Payment Type:L/C,T/T,D/P,D/A
Incoterm:FOB,CFR,CIF,FCA,FAS
Min. Order:1 Others
Transportation:Ocean,Land,Air
$235≥1Others
Applicable Industry: Hotels, Printing Shops, Manufacturing Plant, Construction Works, Machinery Repair Shops, Energy &Amp; Mining
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Saudi Arabia, Kenya, Argentina, Pakistan, India, Mexico, Thailand, Germany, Viet Nam
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Saudi Arabia, Uzbekistan, India, Viet Nam
Transportation: Ocean,Land,Air
Payment Type: L/C,T/T,D/P,D/A
Incoterm: FOB,CFR,CIF,FCA,FAS
Product Parameter

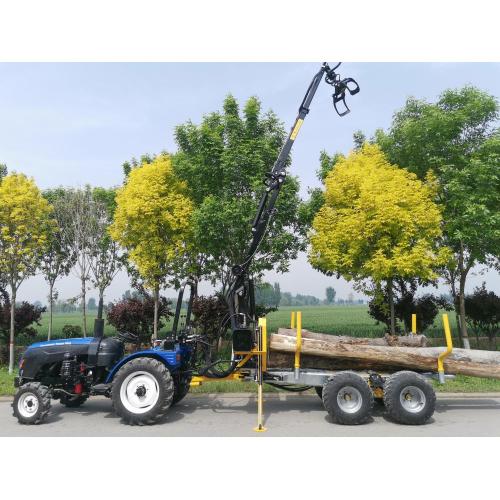

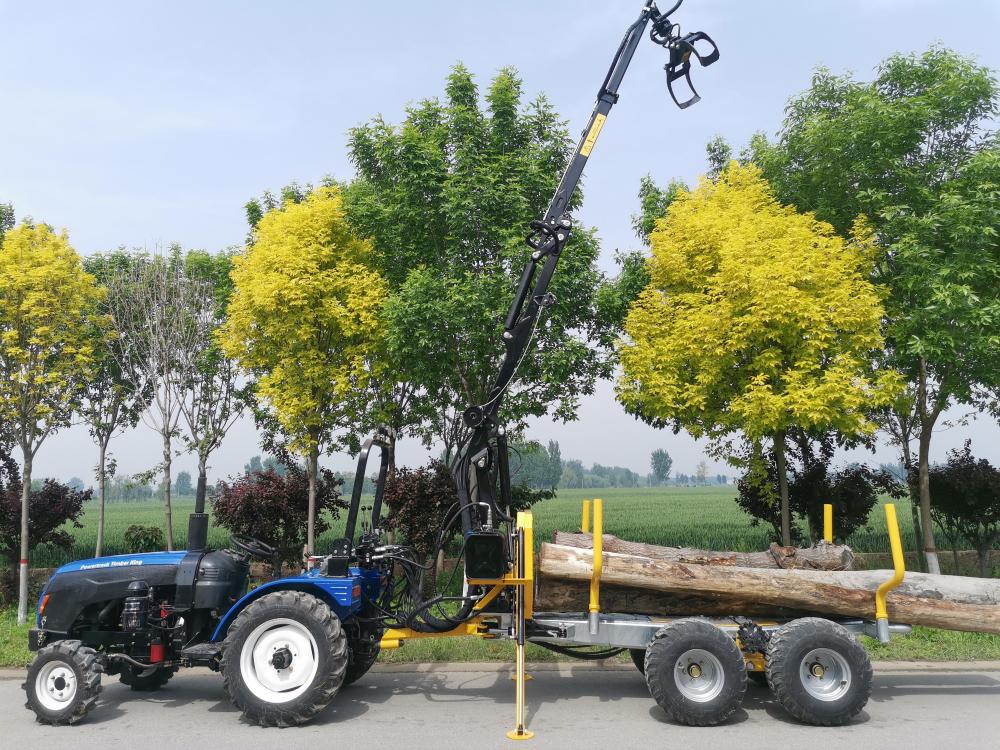

| Timber Crane | |||||||
| Model | RM/TC420 | RM/TC470 | RM/TC550L | RM/TC650L | RM/TC700Z | RM/TC760 | RM/TC780Z |
| Max Outreach(M) | 4.2 | 4.7 | 5.5 | 6.5 | 7 | 7.6 | 7.8 |
| Slewing torque(KNm) | 8 | 8 | 10 | 10 | 22 | 24 | 24 |
| Rotation angle(°) | 370° | 370° | 370° | 370° | 370° | 370° | 370° |
| Number of rotating cylinders | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Lifting capacity at 4 m(KG) | 500 | 580 | 680 | 930 | 1650 | 1020 | 1650 |
| Lifting capacity at full reach(KG) | 480 | 510 | 520 | 550 | 860 | 450 | 580 |
| Telescopic arm(M) | none | none | 1 | 1.3 | 2.1 M (two sections ) | 2.5 M (two section s) | 2.5 M (two sections ) |
| Hydraulic oil flow(L/min) | 15-35 | 20-40 | 25-50 | 30-50 | 40-60 | 35-60 | 40-80 |
| Working pressure(mpa) | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| Rotary motor | GR-10(1T) | GR-10(1T) | GR-30(3T) | GR-30(3T) | GR-30(3T) | GR-30(3T)/GR35F(3.5T) | GR-30(3T)/GR35F(3.5T) |
| Grab | TG16 | TG16 | TG18 | TG18 | TG20 | TG20 | TG26 |
| Total weight( without support, gripping tool and valve),KG | 480 | 505 | 636 | 700 | 1020 | 1020 | 1150 |
| type outriggers weight( KG) | 175 | 175 | 175 | 175 | 195 | 225 | 225 |
| A type outriggers weight( KG) | 160 | 165 | 170 | 170 | 195 | 215 | 215 |
| M type outriggers weight(KG) | 270 | 270 | 270 | 270 | 290 | 310 | 310 |
