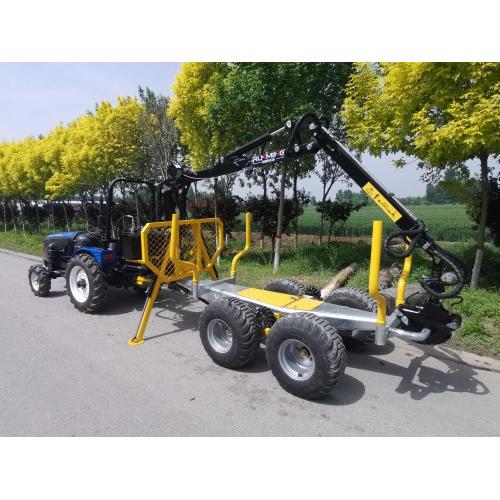

forestry machine 4.2/4.7/5.5/6.5/7m hydraulic grapple atv log wood timber crane Loader for trailer with log grapple
Mini Crawler Excavator, mini excavator, Mini Hydraulic Excavator, Mini Rubber Excavator, Power Trowel, Road marking machine, Thermoplastic, power trowel

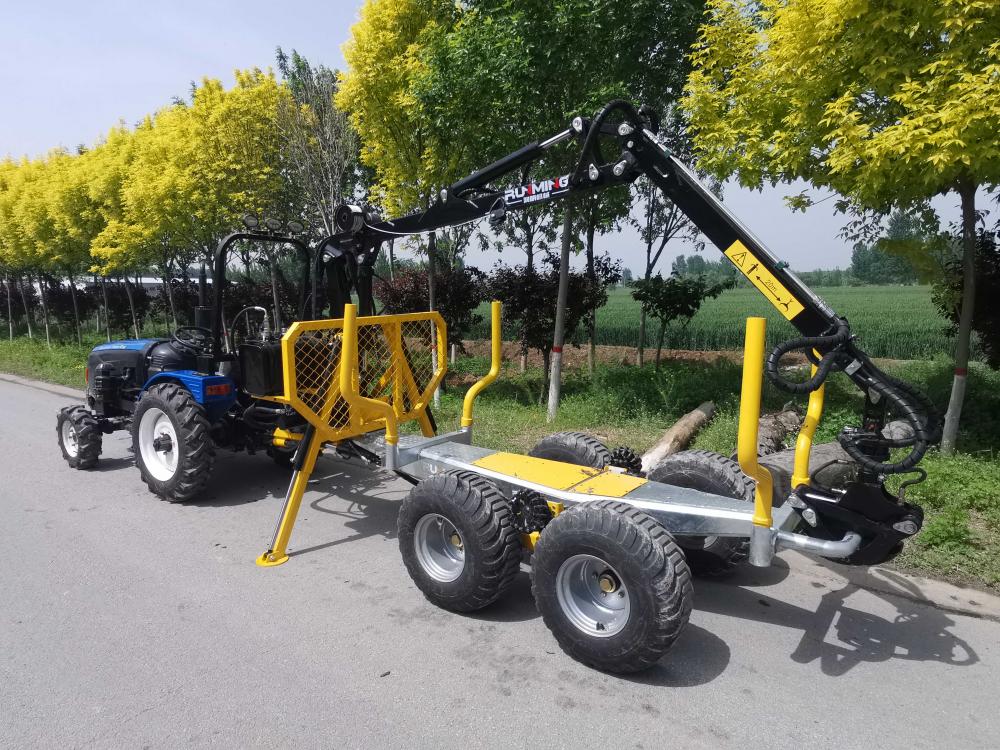

Forest Hydraulic Timber Crane Log Trailers With Grapple Atv Farm Timber Log Trailer With Crane Canada
Timber Crane Parameter
| model | RM/TC420L |
| arm length(m) | 4.2 |
| rotary torque (KN.M) | 11 |
| rotation angle | 380°(left190°,right190°) |
| number of rotating cylinders(piece) | 4 |
| Lifting force at 4 m(kg) | 580 |
| Lifting force at full length (kg) | 500 |
| Grab swing brake from side to side | yes |
| Grab swing brake back and forth | yes |
| Telescopic boom structure | No |
| Boom 360° rotary valve | 1pcs |
| One-way throttle valve for 360° rotation of boom | 2pcs |
| balance valve | 1pcs |
| Recommended hydraulic oil flow (L/min) | 30-45 |
| Working pressure (MPa) | 20 |
| Standard rotary motor | GR-30(3T pin shaft type) |
| The standard grab | TG18(Maximum Opining1080) |
| Total weight (no leg, valve block) KG | 520 kg |
| surface coating | Spray plastic (big and small arms, column base, fixture teeth are red, others are black) |
| hydraulic tubing | Inlet size 13, return size 16, with G1/2" quick coupling, main arm with built-in hose and external iron tubing at forearm |
Timber Crane Details
